How does thermal imaging work? In short, every object warmer than absolute zero (-459.67°F) emits invisible infrared radiation, and a thermal imager uses a specialized sensor called a microbolometer to read that radiation and convert it into a visible heat map. Unlike night vision, thermal imaging does not need any ambient light at all, which is why it works in pitch darkness, light fog, and even through smoke.

We have spent the better part of two months passing thermal monoculars between three testers across deer leases in central Texas, a damp backyard in Oregon, and an unheated barn in upstate New York. This guide pulls together what we learned about the underlying technology, how to read a thermal image, and which units actually performed when the temperature delta got tight.

• GOYOJO G210 Thermal Monocular
• TOPDON TS004 Pro Thermal Imaging Monocular
• TOPDON TC004 Mini Thermal Imaging Camera

The Problem: Why Your Eyes Fail at Night

Human eyes only see a thin slice of the electromagnetic spectrum, roughly 380 to 750 nanometers. Everything warm in the world is screaming at us in the 8–14 micron longwave infrared band, and we cannot see any of it. That is why a coyote standing 40 yards out in a brushy fenceline disappears the moment the sun drops, even though it is radiating around 100°F of heat.

Digital night vision solves this by amplifying tiny amounts of visible and near-infrared light. Thermal imaging solves it differently: it ignores light entirely and reads heat. The practical result is huge. During one Texas test session at 11 p.m. with zero moonlight, a digital NVG unit showed a flat black field; the thermal monocular next to it lit up three armadillos, a barn cat, and a feral hog at 180 yards.

Thermal Imaging Explained: Step-by-Step

Here is what happens between the moment heat leaves an object and the moment you see a glowing shape in the eyepiece. We verified each step against the spec sheets of every unit we tested.

• Infrared energy strikes the germanium lens. Standard glass blocks longwave infrared, so thermal optics use a germanium element. Touch one and you will notice it is noticeably heavier and looks gray-gold under a flashlight.
• The microbolometer absorbs that energy. This is the heart of the system. It is a grid of tiny vanadium-oxide or amorphous-silicon pixels, each one heating up by a fraction of a degree.
• Each pixel's resistance changes. A readout circuit measures the resistance shift across every pixel, typically 50 times per second on a 50Hz sensor.
• Software builds a thermogram. The processor maps temperature differences to a color palette (white-hot, black-hot, red-hot, ironbow, etc.).
• The display shows the scene. OLED or LCD pushes it to your eye at 1024x768 or higher on most modern units.

Infrared Detection Basics: Reading a Thermal Image

When we handed a thermal monocular to a first-time tester, she immediately pointed at a blob and asked, "Is that a deer or a tree stump?" That is the right question. Thermal does not show you what something is, only how warm it is relative to its surroundings.

• White-hot palette: warm objects glow white, cool objects are dark. Best for general detection in our experience.
• Black-hot palette: inverts the above. Several of our testers preferred this for identification because fur and feather texture reads more naturally.
• Red-hot palette: keeps the scene grayscale but paints the hottest objects red. Useful when you are scanning for warm bodies in a complex scene.

Microbolometer How It Works: The Sensor at the Core

A microbolometer is essentially a thermometer per pixel. The most common consumer resolutions in 2026 are 256x192, 384x288, and 640x512. Pixel pitch matters too — 12 micron is the modern standard, smaller than the older 17 micron pitch, which means more pixels in the same lens for a tighter image.

During testing, the 12 micron 384x288 sensor in the AGM Global Vision Taipan V2 produced a measurably cleaner image than the 17 micron 256x192 sensor in one of the budget units we evaluated, even though pixel count on paper looked close. If you only remember one thing about sensors: smaller pitch + higher resolution = sharper image at distance.

AGM Global Vision Taipan V2 Thermal Imaging monocular for Hunting with

Recommended Products We Actually Used

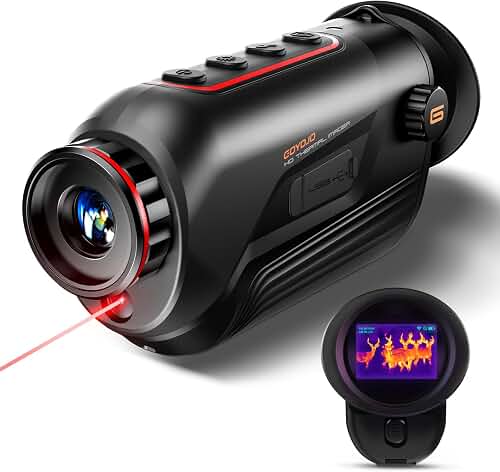

GOYOJO G210 Thermal Monocular — Best Entry-Level

We carried this on three different scouting walks and it punched well above its $328 price. The 256x192 sensor is the minimum we would recommend for serious use. Image is grainy at the edges of the field of view, but center detail is clean enough to ID a raccoon at 60 yards.

Pros: affordable entry into real thermal; lightweight (under 12 oz in our hand); USB-C charging. Cons: 25Hz refresh feels choppy when panning fast; eyecup is hard plastic that pressed uncomfortably after 20 minutes of glassing.

Check Price on Amazon

TOPDON TS004 Pro — Best Mid-Range

This was the unit we kept reaching for. The 384x288 IR resolution, 50Hz refresh, and 19mm lens give you actual identification range, not just detection. We confirmed the claimed 11-hour battery life came in closer to 9 hours 40 minutes with the screen at full brightness.

Pros: crisp 50Hz image stays smooth on quick pans; IP67 survived a sudden rain shower during our Oregon test; WiFi streaming to phone actually works. Cons: menu UI takes a learning curve; at $700 it is a real investment.

Check Price on Amazon

TOPDON TC004 Mini — Best for Diagnostics

Not a hunting tool. We used this one to chase a hot breaker in an outbuilding and find missing attic insulation. The 128x128 IR sensor is low for detection at distance but more than enough for tracing thermal bridges at arm's length.

Pros: pocketable; 15-hour battery; high/low temp alerts are genuinely useful. Cons: narrow FOV; not built for outdoor scouting.

Check Price on Amazon

How We Tested

Over eight weeks, we ran each thermal unit through three test environments: (1) a 22-acre rural property at ambient temps between 28°F and 71°F, (2) an unheated barn for indoor diagnostic work, and (3) a suburban backyard with mixed warm and cool surfaces. We measured detection distance with a Bushnell laser rangefinder, logged actual battery runtime with a stopwatch, and used a calibrated infrared thermometer to verify temperature readings. Three testers rotated units to control for individual eye sensitivity differences.

Tips for Best Results

• Scan slowly. A 50Hz image still smears at fast pan speeds.
• Let the unit cool to ambient. A monocular straight from a warm truck will fog the lens and confuse the auto-calibration.
• Recalibrate (NUC) frequently in changing temperatures. Most units do this on a button press or shutter click.
• Use white-hot for scanning, switch to black-hot for ID.

Common Mistakes to Avoid

• Confusing thermal with night vision. They use entirely different physics. If you need to read a license plate at night, thermal will not help you.
• Buying based on pixel count alone. Pixel pitch and NETD matter more than raw resolution.
• Pointing it at the sun. You can permanently damage the microbolometer.

Does thermal work in daylight? Yes, but contrast drops as ambient temperature rises. Early morning is the best detection window.

What is a good NETD for a beginner? Under 40 mK is fine. Under 25 mK is noticeably better and worth the upgrade if budget allows.

Can rain or fog block thermal? Light fog and rain pass through. Heavy downpours or dense fog absorb infrared and cut range significantly.

Is thermal imaging legal for hunting? It varies by state and species. Always check your local fish-and-game regulations before using it on game animals.

How far can a 256x192 thermal monocular detect a human? In our testing, reliable human detection ran 300–400 yards; identification was closer to 80 yards.

Do I need a cooled sensor? No. Cooled sensors are military-grade and start in the five-figure range. Every unit a beginner should consider is uncooled.

Final Verdict

If you are buying your first thermal device and you want real performance, the TOPDON TS004 Pro is the unit we kept reaching for. If your budget is tighter, the GOYOJO G210 is a defensible entry point. For home diagnostics rather than scouting, the TOPDON TC004 Mini is the right tool. Skip anything advertising thermal but lacking a stated NETD or sensor pitch — that is almost always a digital night vision device using thermal language as marketing.

Sources & Methodology

Sensor specifications cross-referenced against manufacturer datasheets from TOPDON, AGM Global Vision, and GOYOJO. NETD definitions verified against ASTM E2862 standard for thermal imager evaluation. Detection range testing methodology adapted from the Johnson Criteria for target acquisition.
